Description

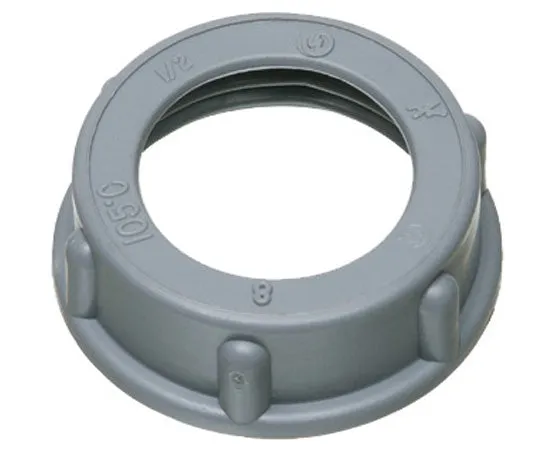

Plastic Insulating Bushings 105 degree C Rated
This Plastic Insulating Bushing is 105º C Rated and available in sizes from 1/2" to 6". It is UL Listed and CSA compliant.
Specifications
Specifications

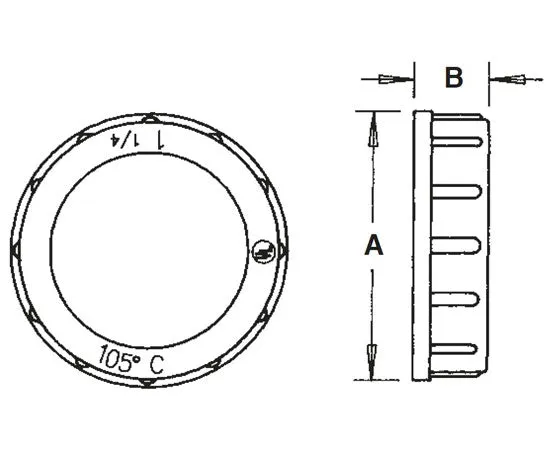

| Part Number | Trade Size | Dim A | Dim B |
|---|---|---|---|
| NPNB-440 | 1/2" | 1.050 | .365 |
| NPNB-441 | 3/4" | 1.280 | .390 |
| NPNB-442 | 1" | 1.632 | .490 |
| NPNB-443 | 1-1/4" | 1.986 | .535 |
| NPNB-444 | 1-1/2" | 2.160 | .550 |
| NPNB-445 | 2" | 2.680 | .600 |
| NPNB-446 | 2-1/2" | 3.150 | .635 |
| NPNB-447 | 3" | 3.800 | .725 |
| NPNB-448 | 3-1/2" | 4.275 | .725 |
| NPNB-449 | 4" | 4.775 | .750 |
| NPNB-4491 | 5" | 6.350 | .975 |
| NPNB-4492 | 6" | 7.475 | .975 |
What's in the box?
What's in the box?
- Qty 1 - Plastic Insulating Bushings 105º C Rated
